MACOM射頻功率晶體管-硅MOSFET
發布時間：2020-10-21 15:01:42 瀏覽：1812

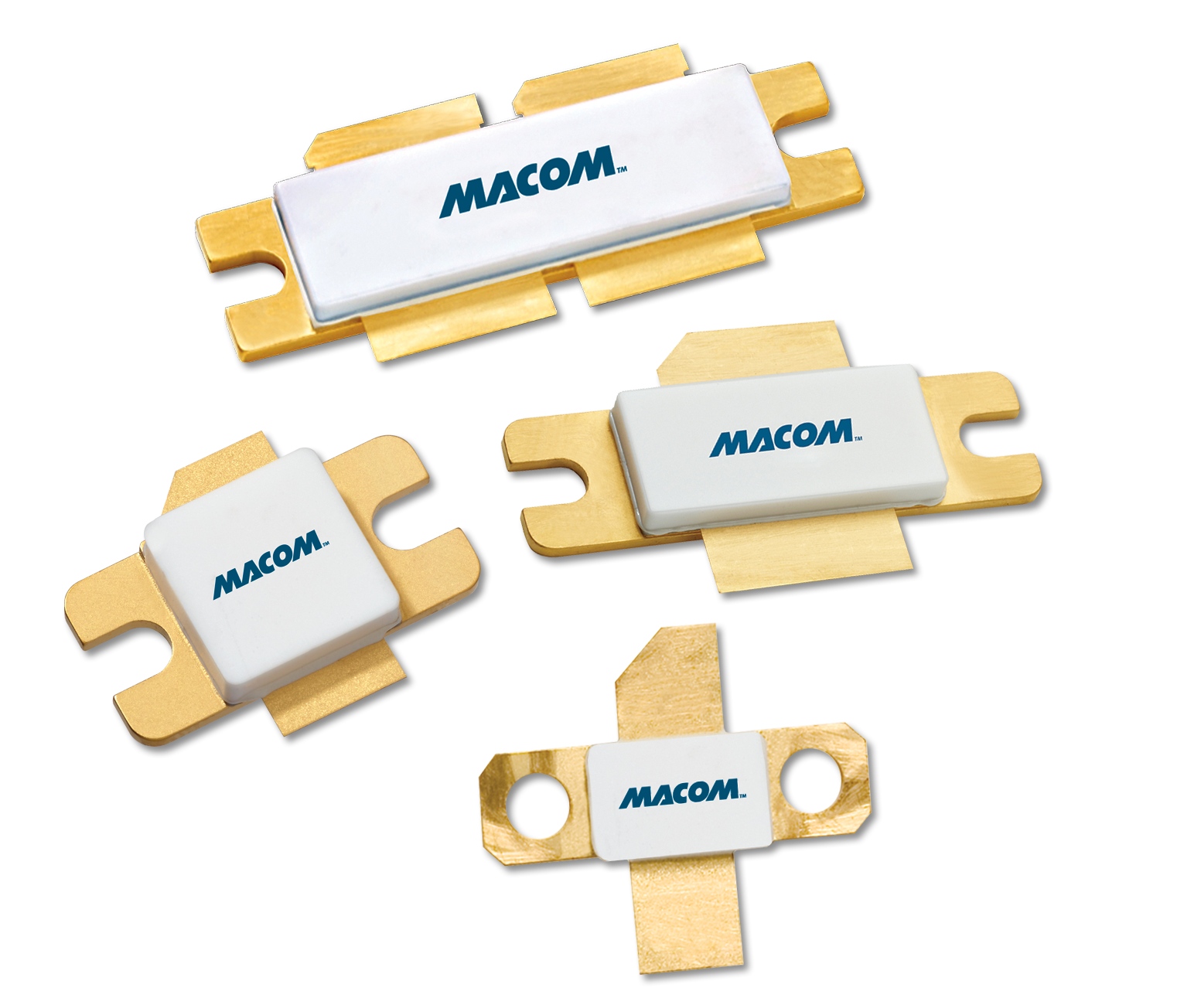

MACOM提供廣泛的TMOS和DMOS射頻功率場效應晶體管產品，這些產品是從DC到1.0GHz的分立器件。MACOM的大功率MOSFET晶體管非常適合民用航空電子、通信、網絡、雷達、工業、科學和醫療應用。
MACOM的金屬化制造工藝確保了高性能和長期可靠性。MACOM的場效應晶體管旨在為客戶的苛刻應用提供可靠的解決方案。
深圳立維創展科技是MACOM的代理商，產品提供MACOM可變增益放大器、功率放大器、低噪聲放大器、線性放大器、混合放大器、FTTx放大器、分布式放大器、放大器增益模塊、有源分離器、功分器、倍頻器、混合混頻器、混頻器、上變頻器、數字衰減器、數字移相器、功率測試儀。壓控衰減器等半導體，進口，質量保證，歡迎咨詢。
詳情了解MACOM產品請點擊：http://www.lunliu2.cn/brand/5.html
或聯系我們的銷售工程師：0755-83050846 QQ: 3312069749
Part Number | Min Frequency (MHz) | Max Frequency (MHz) | Pout (W) | Gain (dB) | Efficiency (%) | Package |
MRF176GU | 5 | 400 | 150 | 12 | 45 | Flange Ceramic Pkg |
MRF151A | 5 | 175 | 150 | 13 | 40 | Flange Ceramic Pkg |
DU2880V | 2 | 175 | 80 | 13 | 60 | Flange Ceramic Pkg |
DU2860T | 2 | 175 | 60 | 13 | 60 | Flange Ceramic Pkg |
MRF175LU | 5 | 400 | 100 | 8 | 50 | Flange Ceramic Pkg |
MRF176GV | 5 | 225 | 200 | 15 | 50 | Flange Ceramic Pkg |
MRF140 | 5 | 150 | 150 | 15 | 40 | Flange Ceramic Pkg |
MRF175GU | 5 | 400 | 150 | 12 | 55 | Flange Ceramic Pkg |
MRF141 | 5 | 175 | 150 | 18 | 40 | Flange Ceramic Pkg |
MRF173CQ | 5 | 175 | 80 | 11 | 55 | Flange Ceramic Pkg |
MRF136Y | 5 | 400 | 30 | 12 | 50 | Flange Ceramic Pkg |
MRF148A | 5 | 175 | 30 | 18 | 40 | Flange Ceramic Pkg |
MRF158 | 5 | 500 | 2 | 16 | 55 | Flange Ceramic Pkg |
MRF174 | 5 | 200 | 125 | 9 | 50 | Flange Ceramic Pkg |
MRF175GV | 5 | 225 | 200 | 14 | 65 | Flange Ceramic Pkg |
MRF177 | 5 | 400 | 100 | 12 | 60 | Flange Ceramic Pkg |
MRF173 | 5 | 175 | 80 | 11 | 55 | Flange Ceramic Pkg |
MRF134 | 5 | 400 | 5 | 11 | 50 | Flange Ceramic Pkg |
MRF166C | 5 | 500 | 20 | 13.5 | 50 | Flange Ceramic Pkg |
MRF166W | 30 | 500 | 40 | 14 | 50 | Flange Ceramic Pkg |
MRF151 | 5 | 175 | 150 | 13 | 40 | Flange Ceramic Pkg |
MRF137 | 5 | 400 | 30 | 13 | 60 | Flange Ceramic Pkg |
MRF150 | 5 | 150 | 150 | 17 | 45 | Flange Ceramic Pkg |
MRF171A | 100 | 200 | 45 | 17 | 60 | Flange Ceramic Pkg |
MRF275G | 100 | 500 | 150 | 10 | 50 | Flange Ceramic Pkg |
MRF160 | 30 | 500 | 4 | 16 | 55 | Flange Ceramic Pkg |
MRF151G | 5 | 175 | 300 | 14 | 50 | Flange Ceramic Pkg |
MRF154 | 2 | 100 | 600 | 17 | 45 | Flange Ceramic Pkg |
MRF157 | 5 | 80 | 600 | 21 | 45 | Flange Ceramic Pkg |
MRF275L | 5 | 500 | 100 | 8.8 | 55 | Flange Ceramic Pkg |
DU28120T | 2 | 175 | 120 | 13 | 60 | Flange Ceramic Pkg |
MRF136 | 5 | 400 | 15 | 13 | 50 | Flange Ceramic Pkg |
UF28100H | 100 | 500 | 100 | 10 | 50 | Flange Ceramic Pkg |
DU2880U | 2 | 175 | 80 | 13 | 60 | Flange Ceramic Pkg |
DU1215S | 2 | 175 | 15 | 9.5 | 60 | Flange Ceramic Pkg |
PH3135-65M | 3100 | 3500 | 65 | 7.5 | 35 | Flange Ceramic Pkg |
DU2810S | 2 | 175 | 10 | 13 | 55 | Flange Ceramic Pkg |
DU2880T | 2 | 175 | 80 | 13 | 60 | Flange Ceramic Pkg |
LF2805A | 500 | 1000 | 5 | 10 | 50 | Flange Ceramic Pkg |
UF2815B | 100 | 500 | 15 | 10 | 50 | Flange Ceramic Pkg |
DU28120V | 2 | 175 | 120 | 13 | 60 | Flange Ceramic Pkg |
UF2805B | 100 | 500 | 5 | 10 | 50 | Flange Ceramic Pkg |
UF2840P | 100 | 500 | 40 | 10 | 50 | Flange Ceramic Pkg |
DU2805S | 2 | 175 | 5 | 11 | 55 | Flange Ceramic Pkg |
DU2820S | 2 | 175 | 20 | 13 | 60 | Flange Ceramic Pkg |
DU28200M | 2 | 175 | 200 | 13 | 55 | Flange Ceramic Pkg |
UF2810P | 100 | 500 | 10 | 10 | 50 | Flange Ceramic Pkg |
UF2820P | 100 | 500 | 20 | 10 | 50 | Flange Ceramic Pkg |
UF28100M | 100 | 500 | 100 | 10 | 50 | Flange Ceramic Pkg |
UF28100V | 100 | 500 | 100 | 10 | 50 | Flange Ceramic Pkg |
UF2840G | 100 | 500 | 40 | 10 | 50 | Flange Ceramic Pkg |
DU2860U | 2 | 175 | 60 | 13 | 60 | Flange Ceramic Pkg |
UF28150J | 100 | 500 | 150 | 8 | 55 | Flange Ceramic Pkg |
DU2840S | 2 | 175 | 40 | 13 | 60 | Flange Ceramic Pkg |
