?XC6365系列降壓DC/DC控制器TOREX

發布時間：2023-05-19 16:50:59     瀏覽：1293

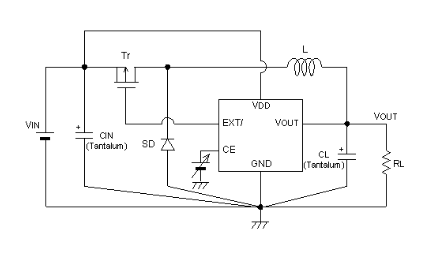

TOREX XC6365系列是內嵌高速度低通態電阻控制器的通用型高頻率降壓DC/DC控制器集成電路。采用晶體管，電感線圈，二極管和電容器共4種外置器件，可創建輸出電流為1A以上高效率降壓DC/DC轉換器。

XC6365系列控制器能夠在1.5V～6.0V(精密度±2.5％)范圍之內，以0.1V的間距實現設置(VOUT型)。并且，除去VOUT型之外，還具有內嵌1.0V的基準電壓源，能夠外置器件任意設置輸出電壓的規格(FB型)。

XC6365系列控制器因開關頻率高至300kHz，可以使用微型外置器件。因此，在由小負載至大輸出電流的整體負載范圍之內，高達高效率。

XC6365系列控制器軟啟動時間有，在內部設置為10ms的規格(A,B型)，及其適用外置電阻和電容器進行優化的規格(C,D型)。

采用待機性能，可停止運行使電流損耗高達0.5μA以下(CE端"L")。

XC6365系列控制器內嵌UVLO性能，當輸入電壓在指定電壓狀態時，會強制性把外置晶體管中斷。

特性

輸入電壓范圍：2.2V～10V

輸出電壓范圍：1.5V～6.0V(0.1V間距),±2.5%

工作頻率：300kHz±15%,客戶定制180,500kHz

輸出電流：1.0A(VIN=5.0V,VOUT=3.0V)

高轉換效率：92%(TYP.)

待機電流：ISTB=0.5μA(MAX.)

TOREX半導體主要提供COMS、傳感器、二極管等元器件，產品以小體積、性能卓越而著名。

深圳市立維創展科技有限公司，優勢分銷TOREX電源器件，大量現貨庫存，歡迎合作。

詳情了解TOREX請點擊：http://www.lunliu2.cn/brand/62.html


型號

Type

Output Voltage

Oscillation Frequency

Packages

XC6365A152ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

180kHz

USP-6C

XC6365A152MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

180kHz

SOT-25

XC6365A153ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

300kHz

USP-6C

XC6365A153MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

300kHz

SOT-25

XC6365A155ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

500kHz

USP-6C

XC6365A155MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.5V

500kHz

SOT-25

XC6365A162ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

180kHz

USP-6C

XC6365A162MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

180kHz

SOT-25

XC6365A163ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

300kHz

USP-6C

XC6365A163MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

300kHz

SOT-25

XC6365A165ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

500kHz

USP-6C

XC6365A165MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.6V

500kHz

SOT-25

XC6365A172ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

180kHz

USP-6C

XC6365A172MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

180kHz

SOT-25

XC6365A173ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

300kHz

USP-6C

XC6365A173MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

300kHz

SOT-25

XC6365A175ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

500kHz

USP-6C

XC6365A175MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.7V

500kHz

SOT-25

XC6365A182ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

180kHz

USP-6C

XC6365A182MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

180kHz

SOT-25

XC6365A183ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

300kHz

USP-6C

XC6365A183MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

300kHz

SOT-25

XC6365A185ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

500kHz

USP-6C

XC6365A185MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.8V

500kHz

SOT-25

XC6365A192ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

180kHz

USP-6C

XC6365A192MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

180kHz

SOT-25

XC6365A193ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

300kHz

USP-6C

XC6365A193MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

300kHz

SOT-25

XC6365A195ER-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

500kHz

USP-6C

XC6365A195MR-G

VOUT type: internally set-up, Soft-start internally set-up

1.9V

500kHz

SOT-25

XC6365A202ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

180kHz

USP-6C

XC6365A202MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

180kHz

SOT-25

XC6365A203ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

300kHz

USP-6C

XC6365A203MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

300kHz

SOT-25

XC6365A205ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

500kHz

USP-6C

XC6365A205MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.0V

500kHz

SOT-25

XC6365A212ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

180kHz

USP-6C

XC6365A212MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

180kHz

SOT-25

XC6365A213ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

300kHz

USP-6C

XC6365A213MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

300kHz

SOT-25

XC6365A215ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

500kHz

USP-6C

XC6365A215MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.1V

500kHz

SOT-25

XC6365A222ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

180kHz

USP-6C

XC6365A222MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

180kHz

SOT-25

XC6365A223ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

300kHz

USP-6C

XC6365A223MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

300kHz

SOT-25

XC6365A225ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

500kHz

USP-6C

XC6365A225MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.2V

500kHz

SOT-25

XC6365A232ER-G

VOUT type: internally set-up, Soft-start internally set-up

2.3V

180kHz

USP-6C

XC6365A232MR-G

VOUT type: internally set-up, Soft-start internally set-up

2.3V

180kHz

SOT-25
