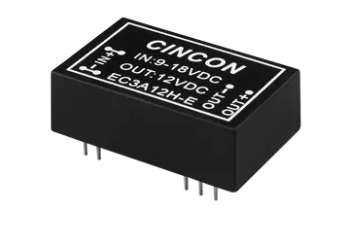

EC3A-E系列隔離式DC-DC轉換器CINCON
發布時間：2024-09-19 09:16:19 瀏覽：5448
CINCON的EC3A-E系列隔離式DC-DC轉換器是一款性能可靠的轉換器，具有以下主要特點：
主要特點：
3W隔離輸出
24針DIP封裝
效率高達78%
2:1輸入范圍
穩壓輸出
具有Raspberry Pi接口
持續短路保護
符合EN55032 Class A標準
無鉭電容設計
寬工作溫度范圍：-40°C到+85°C
通過UL60950-1和IEC/EN/UL62368-1認證
技術規格：
1. 輸入電壓范圍：
5V型號：4.5-5.9V
12V型號：9-18V
24V型號：18-36V
48V型號：36-72V
2. 輸出電壓和電流：
可提供多種輸出電壓和電流組合，如5V、12V、15V、±5V、±12V、±15V等。
輸出電流范圍從100mA到600mA不等，具體取決于不同的型號。
3. 效率：根據不同型號，轉換器的效率在72%至87%之間。
4. 隔離電壓：
標準型號：500 VDC
帶“H”后綴型號：3000 VDC
5. 工作溫度：支持-40°C到+85°C的工作溫度，適用于惡劣的工業環境。
6. 短路保護：具有持續的短路保護功能，防止輸出端短路導致的設備損壞。
7. 隔離電阻：1.5K VDC(標準型號)，加強電氣隔離，確保設備安全。
8. 封裝：提供標準DIP封裝和SMD封裝，尺寸小巧，便于PCB安裝。
典型應用：
EC3A-E系列隔離式DC-DC轉換器適用于工業自動化、通信設備、儀器儀表、分布式電源系統等領域，特別是需要高可靠性和寬輸入電壓范圍的應用場景。
型號：
| Part Number | Input Voltage | Output Voltage | Output Current | No load Input Current | Efficiency (%) | I/O Isolation Voltage | Package |
| EC3A23S-E | 18~36V | 15V | 0.2A | 7.5mA | 86 | 500VDC | SMD24 |
| EC3A27HMS-E | 18~36V | 3.3V | 0.6A | 5mA | 78 | 1500VDC | SMD24 |
| EC3A26HMS-E | 18~36V | ±15V | ±0.1A | 10mA | 86 | 1500VDC | SMD24 |
| EC3A25HMS-E | 18~36V | ±12V | ±0.125A | 10mA | 85 | 1500VDC | SMD24 |
| EC3A24HMS-E | 18~36V | ±5V | ±0.3A | 7.5mA | 82 | 1500VDC | SMD24 |
| EC3A23HMS-E | 18~36V | 15V | 0.2A | 7.5mA | 86 | 1500VDC | SMD24 |
| EC3A22HMS-E | 18~36V | 12V | 0.25A | 7.5mA | 86 | 1500VDC | SMD24 |
| EC3A21HMS-E | 18~36V | 5V | 0.6A | 7.5mA | 82 | 1500VDC | SMD24 |
| EC3A21S-E | 18~36V | 5V | 0.6A | 7.5mA | 82 | 500VDC | SMD24 |
| EC3A22S-E | 18~36V | 12V | 0.25A | 7.5mA | 86 | 500VDC | SMD24 |
| EC3A24S-E | 18~36V | ±5V | ±0.3A | 7.5mA | 82 | 500VDC | SMD24 |
| EC3A25S-E | 18~36V | ±12V | ±0.125A | 10mA | 85 | 500VDC | SMD24 |
| EC3A26S-E | 18~36V | ±15V | ±0.1A | 10mA | 86 | 500VDC | SMD24 |
| EC3A23HS-E | 18~36V | 15V | 0.2A | 7.5mA | 86 | 3000VDC | SMD24 |
| EC3A24HS-E | 18~36V | ±5V | ±0.3A | 7.5mA | 82 | 3000VDC | SMD24 |
| EC3A25HS-E | 18~36V | ±12V | ±0.125A | 10mA | 85 | 3000VDC | SMD24 |
| EC3A26HS-E | 18~36V | ±15V | ±0.1A | 10mA | 86 | 3000VDC | SMD24 |
| EC3A27HS-E | 18~36V | 3.3V | 0.6A | 5mA | 78 | 3000VDC | SMD24 |
| EC3A22HS-E | 18~36V | 12V | 0.25A | 7.5mA | 86 | 3000VDC | SMD24 |
| EC3A27S-E | 18~36V | 3.3V | 0.6A | 5mA | 78 | 500VDC | SMD24 |
| EC3A21-E | 18~36V | 5V | 0.6A | 7.5mA | 82 | 500VDC | DIP24 |
| EC3A22-E | 18~36V | 12V | 0.25A | 7.5mA | 86 | 500VDC | DIP24 |
| EC3A23-E | 18~36V | 15V | 0.2A | 7.5mA | 86 | 500VDC | DIP24 |
| EC3A24-E | 18~36V | ±5V | ±0.3A | 7.5mA | 82 | 500VDC | DIP24 |
| EC3A25-E | 18~36V | ±12V | ±0.125A | 10mA | 85 | 500VDC | DIP24 |
| EC3A26-E | 18~36V | ±15V | ±0.1A | 10mA | 86 | 500VDC | DIP24 |
| EC3A27-E | 18~36V | 3.3V | 0.6A | 5mA | 78 | 500VDC | DIP24 |
| EC3A21M-E | 18~36V | 5V | 0.6A | 7.5mA | 82 | 500VDC | DIP24 |
| EC3A22M-E | 18~36V | 12V | 0.25A | 7.5mA | 86 | 500VDC | DIP24 |
| EC3A23M-E | 18~36V | 15V | 0.2A | 7.5mA | 86 | 500VDC | DIP24 |
| EC3A24M-E | 18~36V | ±5V | ±0.3A | 7.5mA | 82 | 500VDC | DIP24 |
| EC3A25M-E | 18~36V | ±12V | ±0.125A | 10mA | 85 | 500VDC | DIP24 |
| EC3A26M-E | 18~36V | ±15V | ±0.1A | 10mA | 86 | 500VDC | DIP24 |
| EC3A27M-E | 18~36V | 3.3V | 0.6A | 5mA | 78 | 500VDC | DIP24 |
| EC3A21H-E | 18~36V | 5V | 0.6A | 7.5mA | 82 | 3000VDC | DIP24 |
| EC3A22H-E | 18~36V | 12V | 0.25A | 7.5mA | 86 | 3000VDC | DIP24 |
| EC3A23H-E | 18~36V | 15V | 0.2A | 7.5mA | 86 | 3000VDC | DIP24 |
| EC3A24H-E | 18~36V | ±5V | ±0.3A | 7.5mA | 82 | 3000VDC | DIP24 |
| EC3A25H-E | 18~36V | ±12V | ±0.125A | 10mA | 85 | 3000VDC | DIP24 |
| EC3A26H-E | 18~36V | ±15V | ±0.1A | 10mA | 86 | 3000VDC | DIP24 |
| EC3A27H-E | 18~36V | 3.3V | 0.6A | 5mA | 78 | 3000VDC | DIP24 |
| EC3A21HM-E | 18~36V | 5V | 0.6A | 7.5mA | 82 | 1500VDC | DIP24 |
| EC3A22HM-E | 18~36V | 12V | 0.25A | 7.5mA | 86 | 1500VDC | DIP24 |
| EC3A23HM-E | 18~36V | 15V | 0.2A | 7.5mA | 86 | 1500VDC | DIP24 |
| EC3A24HM-E | 18~36V | ±5V | ±0.3A | 7.5mA | 82 | 1500VDC | DIP24 |
| EC3A25HM-E | 18~36V | ±12V | ±0.125A | 10mA | 85 | 1500VDC | DIP24 |
| EC3A26HM-E | 18~36V | ±15V | ±0.1A | 10mA | 86 | 1500VDC | DIP24 |
| EC3A27HM-E | 18~36V | 3.3V | 0.6A | 5mA | 78 | 1500VDC | DIP24 |
| EC3A21MS-E | 18~36V | 5V | 0.6A | 7.5mA | 82 | 500VDC | SMD24 |
| EC3A22MS-E | 18~36V | 12V | 0.25A | 7.5mA | 86 | 500VDC | SMD24 |
| EC3A23MS-E | 18~36V | 15V | 0.2A | 7.5mA | 86 | 500VDC | SMD24 |
| EC3A24MS-E | 18~36V | ±5V | ±0.3A | 7.5mA | 82 | 500VDC | SMD24 |
| EC3A25MS-E | 18~36V | ±12V | ±0.125A | 10mA | 85 | 500VDC | SMD24 |
| EC3A26MS-E | 18~36V | ±15V | ±0.1A | 10mA | 86 | 500VDC | SMD24 |
| EC3A27MS-E | 18~36V | 3.3V | 0.6A | 5mA | 78 | 500VDC | SMD24 |
| EC3A21HS-E | 18~36V | 5V | 0.6A | 7.5mA | 82 | 3000VDC | SMD24 |
| EC3A31-E | 36~72V | 5V | 0.6A | 3mA | 84 | 500VDC | DIP24 |
| EC3A32-E | 36~72V | 12V | 0.25A | 3mA | 86 | 500VDC | DIP24 |
| EC3A33-E | 36~72V | 15V | 0.2A | 5mA | 86 | 500VDC | DIP24 |
| EC3A34-E | 36~72V | ±5V | ±0.3A | 5mA | 85 | 500VDC | DIP24 |
| EC3A35-E | 36~72V | ±12V | ±0.125A | 5mA | 87 | 500VDC | DIP24 |
| EC3A36-E | 36~72V | ±15V | ±0.1A | 5mA | 87 | 500VDC | DIP24 |
| EC3A37-E | 36~72V | 3.3V | 0.6A | 3mA | 79 | 500VDC | DIP24 |
| EC3A31M-E | 36~72V | 5V | 0.6A | 3mA | 84 | 500VDC | DIP24 |
| EC3A32M-E | 36~72V | 12V | 0.25A | 3mA | 86 | 500VDC | DIP24 |
| EC3A33M-E | 36~72V | 15V | 0.2A | 5mA | 86 | 500VDC | DIP24 |
| EC3A34M-E | 36~72V | ±5V | ±0.3A | 5mA | 85 | 500VDC | DIP24 |
| EC3A35M-E | 36~72V | ±12V | ±0.125A | 5mA | 87 | 500VDC | DIP24 |
| EC3A36M-E | 36~72V | ±15V | ±0.1A | 5mA | 87 | 500VDC | DIP24 |
| EC3A37M-E | 36~72V | 3.3V | 0.6A | 3mA | 79 | 500VDC | DIP24 |
| EC3A31H-E | 36~72V | 5V | 0.6A | 3mA | 84 | 3000VDC | DIP24 |
| EC3A32H-E | 36~72V | 12V | 0.25A | 3mA | 86 | 3000VDC | DIP24 |
| EC3A33H-E | 36~72V | 15V | 0.2A | 5mA | 86 | 3000VDC | DIP24 |
| EC3A34H-E | 36~72V | ±5V | ±0.3A | 5mA | 85 | 3000VDC | DIP24 |
| EC3A35H-E | 36~72V | ±12V | ±0.125A | 5mA | 87 | 3000VDC | DIP24 |
| EC3A36H-E | 36~72V | ±15V | ±0.1A | 5mA | 87 | 3000VDC | DIP24 |
| EC3A37H-E | 36~72V | 3.3V | 0.6A | 3mA | 79 | 3000VDC | DIP24 |
| EC3A31HM-E | 36~72V | 5V | 0.6A | 3mA | 84 | 1500VDC | DIP24 |
| EC3A32HM-E | 36~72V | 12V | 0.25A | 3mA | 86 | 1500VDC | DIP24 |
| EC3A33HM-E | 36~72V | 15V | 0.2A | 5mA | 86 | 1500VDC | DIP24 |
| EC3A34HM-E | 36~72V | ±5V | ±0.3A | 5mA | 85 | 1500VDC | DIP24 |
| EC3A35HM-E | 36~72V | ±12V | ±0.125A | 5mA | 87 | 1500VDC | DIP24 |
| EC3A36HM-E | 36~72V | ±15V | ±0.1A | 5mA | 87 | 1500VDC | DIP24 |
| EC3A37HM-E | 36~72V | 3.3V | 0.6A | 3mA | 79 | 1500VDC | DIP24 |
| EC3A31MS-E | 36~72V | 5V | 0.6A | 3mA | 84 | 500VDC | SMD24 |
| EC3A32MS-E | 36~72V | 12V | 0.25A | 3mA | 86 | 500VDC | SMD24 |
| EC3A33MS-E | 36~72V | 15V | 0.2A | 5mA | 86 | 500VDC | SMD24 |
| EC3A34MS-E | 36~72V | ±5V | ±0.3A | 5mA | 85 | 500VDC | SMD24 |
| EC3A35MS-E | 36~72V | ±12V | ±0.125A | 5mA | 87 | 500VDC | SMD24 |
| EC3A36MS-E | 36~72V | ±15V | ±0.1A | 5mA | 87 | 500VDC | SMD24 |
| EC3A37MS-E | 36~72V | 3.3V | 0.6A | 3mA | 79 | 500VDC | SMD24 |
| EC3A34HMS-E | 36~72V | ±5V | ±0.3A | 5mA | 85 | 1500VDC | SMD24 |
| EC3A36S-E | 36~72V | ±15V | ±0.1A | 5mA | 87 | 500VDC | SMD24 |
| EC3A31HMS-E | 36~72V | 5V | 0.6A | 3mA | 84 | 1500VDC | SMD24 |
| EC3A32HMS-E | 36~72V | 12V | 0.25A | 3mA | 86 | 1500VDC | SMD24 |
| EC3A33HMS-E | 36~72V | 15V | 0.2A | 5mA | 86 | 1500VDC | SMD24 |
| EC3A35HMS-E | 36~72V | ±12V | ±0.125A | 5mA | 87 | 1500VDC | SMD24 |
| EC3A36HMS-E | 36~72V | ±15V | ±0.1A | 5mA | 87 | 1500VDC | SMD24 |
| EC3A37HMS-E | 36~72V | 3.3V | 0.6A | 3mA | 79 | 1500VDC | SMD24 |
| EC3A35S-E | 36~72V | ±12V | ±0.125A | 5mA | 87 | 500VDC | SMD24 |
| EC3A34S-E | 36~72V | ±5V | ±0.3A | 5mA | 85 | 500VDC | SMD24 |
| EC3A37S-E | 36~72V | 3.3V | 0.6A | 3mA | 79 | 500VDC | SMD24 |
| EC3A33S-E | 36~72V | 15V | 0.2A | 5mA | 86 | 500VDC | SMD24 |
| EC3A32S-E | 36~72V | 12V | 0.25A | 3mA | 86 | 500VDC | SMD24 |
| EC3A31S-E | 36~72V | 5V | 0.6A | 3mA | 84 | 500VDC | SMD24 |
| EC3A31HS-E | 36~72V | 5V | 0.6A | 3mA | 84 | 3000VDC | SMD24 |
| EC3A32HS-E | 36~72V | 12V | 0.25A | 3mA | 86 | 3000VDC | SMD24 |
| EC3A33HS-E | 36~72V | 15V | 0.2A | 5mA | 86 | 3000VDC | SMD24 |
| EC3A34HS-E | 36~72V | ±5V | ±0.3A | 5mA | 85 | 3000VDC | SMD24 |
| EC3A35HS-E | 36~72V | ±12V | ±0.125A | 5mA | 87 | 3000VDC | SMD24 |
| EC3A36HS-E | 36~72V | ±15V | ±0.1A | 5mA | 87 | 3000VDC | SMD24 |
| EC3A37HS-E | 36~72V | 3.3V | 0.6A | 3mA | 79 | 3000VDC | SMD24 |
| EC3A07HMS-E | 4.5~9V | 3.3V | 0.6A | 15mA | 72 | 1500VDC | SMD24 |
| EC3A06HMS-E | 4.5~9V | ±15V | ±0.1A | 25mA | 80 | 1500VDC | SMD24 |
| EC3A05HMS-E | 4.5~9V | ±12V | ±0.125A | 25mA | 80 | 1500VDC | SMD24 |
| EC3A04HMS-E | 4.5~9V | ±5V | ±0.3A | 25mA | 77 | 1500VDC | SMD24 |
| EC3A03HMS-E | 4.5~9V | 15V | 0.2A | 15mA | 80 | 1500VDC | SMD24 |
| EC3A02HMS-E | 4.5~9V | 12V | 0.25A | 15mA | 80 | 1500VDC | SMD24 |
| EC3A01HMS-E | 4.5~9V | 5V | 0.6A | 15mA | 77 | 1500VDC | SMD24 |
| EC3A07S-E | 4.5~9V | 3.3V | 0.6A | 15mA | 72 | 500VDC | SMD24 |
| EC3A06S-E | 4.5~9V | ±15V | ±0.1A | 25mA | 80 | 500VDC | SMD24 |
| EC3A05S-E | 4.5~9V | ±12V | ±0.125A | 25mA | 80 | 500VDC | SMD24 |
| EC3A04S-E | 4.5~9V | ±5V | ±0.3A | 25mA | 77 | 500VDC | SMD24 |
| EC3A03S-E | 4.5~9V | 15V | 0.2A | 15mA | 80 | 500VDC | SMD24 |
| EC3A02S-E | 4.5~9V | 12V | 0.25A | 15mA | 80 | 500VDC | SMD24 |
| EC3A01S-E | 4.5~9V | 5V | 0.6A | 15mA | 77 | 500VDC | SMD24 |
| EC3A01-E | 4.5~9V | 5V | 0.6A | 15mA | 77 | 500VDC | DIP24 |
| EC3A02-E | 4.5~9V | 12V | 0.25A | 15mA | 80 | 500VDC | DIP24 |
| EC3A03-E | 4.5~9V | 15V | 0.2A | 15mA | 80 | 500VDC | DIP24 |
| EC3A04-E | 4.5~9V | ±5V | ±0.3A | 25mA | 77 | 500VDC | DIP24 |
| EC3A05-E | 4.5~9V | ±12V | ±0.125A | 25mA | 80 | 500VDC | DIP24 |
| EC3A06-E | 4.5~9V | ±15V | ±0.1A | 25mA | 80 | 500VDC | DIP24 |
| EC3A07-E | 4.5~9V | 3.3V | 0.6A | 15mA | 72 | 500VDC | DIP24 |
| EC3A01M-E | 4.5~9V | 5V | 0.6A | 15mA | 77 | 500VDC | DIP24 |
| EC3A02M-E | 4.5~9V | 12V | 0.25A | 15mA | 80 | 500VDC | DIP24 |
| EC3A03M-E | 4.5~9V | 15V | 0.2A | 15mA | 80 | 500VDC | DIP24 |
| EC3A04M-E | 4.5~9V | ±5V | ±0.3A | 25mA | 77 | 500VDC | DIP24 |
| EC3A05M-E | 4.5~9V | ±12V | ±0.125A | 25mA | 80 | 500VDC | DIP24 |
| EC3A06M-E | 4.5~9V | ±15V | ±0.1A | 25mA | 80 | 500VDC | DIP24 |
| EC3A07M-E | 4.5~9V | 3.3V | 0.6A | 15mA | 72 | 500VDC | DIP24 |
| EC3A01H-E | 4.5~9V | 5V | 0.6A | 15mA | 77 | 3000VDC | DIP24 |
| EC3A02H-E | 4.5~9V | 12V | 0.25A | 15mA | 80 | 3000VDC | DIP24 |
| EC3A03H-E | 4.5~9V | 15V | 0.2A | 15mA | 80 | 3000VDC | DIP24 |
| EC3A04H-E | 4.5~9V | ±5V | ±0.3A | 25mA | 77 | 3000VDC | DIP24 |
| EC3A05H-E | 4.5~9V | ±12V | ±0.125A | 25mA | 80 | 3000VDC | DIP24 |
| EC3A06H-E | 4.5~9V | ±15V | ±0.1A | 25mA | 80 | 3000VDC | DIP24 |
| EC3A07H-E | 4.5~9V | 3.3V | 0.6A | 15mA | 72 | 3000VDC | DIP24 |
| EC3A01HM-E | 4.5~9V | 5V | 0.6A | 15mA | 77 | 1500VDC | DIP24 |
| EC3A02HM-E | 4.5~9V | 12V | 0.25A | 15mA | 80 | 1500VDC | DIP24 |
| EC3A03HM-E | 4.5~9V | 15V | 0.2A | 15mA | 80 | 1500VDC | DIP24 |
| EC3A04HM-E | 4.5~9V | ±5V | ±0.3A | 25mA | 77 | 1500VDC | DIP24 |
| EC3A05HM-E | 4.5~9V | ±12V | ±0.125A | 25mA | 80 | 1500VDC | DIP24 |
| EC3A06HM-E | 4.5~9V | ±15V | ±0.1A | 25mA | 80 | 1500VDC | DIP24 |
| EC3A07HM-E | 4.5~9V | 3.3V | 0.6A | 15mA | 72 | 1500VDC | DIP24 |
| EC3A01MS-E | 4.5~9V | 5V | 0.6A | 15mA | 77 | 500VDC | SMD24 |
| EC3A02MS-E | 4.5~9V | 12V | 0.25A | 15mA | 80 | 500VDC | SMD24 |
| EC3A03MS-E | 4.5~9V | 15V | 0.2A | 15mA | 80 | 500VDC | SMD24 |
| EC3A04MS-E | 4.5~9V | ±5V | ±0.3A | 25mA | 77 | 500VDC | SMD24 |
| EC3A05MS-E | 4.5~9V | ±12V | ±0.125A | 25mA | 80 | 500VDC | SMD24 |
| EC3A06MS-E | 4.5~9V | ±15V | ±0.1A | 25mA | 80 | 500VDC | SMD24 |
| EC3A07MS-E | 4.5~9V | 3.3V | 0.6A | 15mA | 72 | 500VDC | SMD24 |
| EC3A01HS-E | 4.5~9V | 5V | 0.6A | 15mA | 77 | 3000VDC | SMD24 |
| EC3A02HS-E | 4.5~9V | 12V | 0.25A | 15mA | 80 | 3000VDC | SMD24 |
| EC3A03HS-E | 4.5~9V | 15V | 0.2A | 15mA | 80 | 3000VDC | SMD24 |
| EC3A04HS-E | 4.5~9V | ±5V | ±0.3A | 25mA | 77 | 3000VDC | SMD24 |
| EC3A05HS-E | 4.5~9V | ±12V | ±0.125A | 25mA | 80 | 3000VDC | SMD24 |
| EC3A06HS-E | 4.5~9V | ±15V | ±0.1A | 25mA | 80 | 3000VDC | SMD24 |
| EC3A07HS-E | 4.5~9V | 3.3V | 0.6A | 15mA | 72 | 3000VDC | SMD24 |
| EC3A11-E | 9~18V | 5V | 0.6A | 7.5mA | 81 | 500VDC | DIP24 |
| EC3A12-E | 9~18V | 12V | 0.25A | 10mA | 84 | 500VDC | DIP24 |
| EC3A13-E | 9~18V | 15V | 0.2A | 10mA | 85 | 500VDC | DIP24 |
| EC3A14-E | 9~18V | ±5V | ±0.3A | 15mA | 82 | 500VDC | DIP24 |
| EC3A15-E | 9~18V | ±12V | ±0.125A | 12mA | 84 | 500VDC | DIP24 |
| EC3A16-E | 9~18V | ±15V | ±0.1A | 15mA | 85 | 500VDC | DIP24 |
| EC3A17-E | 9~18V | 3.3V | 0.6A | 7.5mA | 78 | 500VDC | DIP24 |
| EC3A11M-E | 9~18V | 5V | 0.6A | 7.5mA | 81 | 500VDC | DIP24 |
| EC3A12M-E | 9~18V | 12V | 0.25A | 10mA | 84 | 500VDC | DIP24 |
| EC3A13M-E | 9~18V | 15V | 0.2A | 10mA | 85 | 500VDC | DIP24 |
| EC3A14M-E | 9~18V | ±5V | ±0.3A | 15mA | 82 | 500VDC | DIP24 |
| EC3A15M-E | 9~18V | ±12V | ±0.125A | 12mA | 84 | 500VDC | DIP24 |
| EC3A16M-E | 9~18V | ±15V | ±0.1A | 15mA | 85 | 500VDC | DIP24 |
| EC3A17M-E | 9~18V | 3.3V | 0.6A | 7.5mA | 78 | 500VDC | DIP24 |
| EC3A11H-E | 9~18V | 5V | 0.6A | 7.5mA | 81 | 3000VDC | DIP24 |
| EC3A12H-E | 9~18V | 12V | 0.25A | 10mA | 84 | 3000VDC | DIP24 |
| EC3A13H-E | 9~18V | 15V | 0.2A | 10mA | 85 | 3000VDC | DIP24 |
| EC3A14H-E | 9~18V | ±5V | ±0.3A | 15mA | 82 | 3000VDC | DIP24 |
| EC3A15H-E | 9~18V | ±12V | ±0.125A | 12mA | 84 | 3000VDC | DIP24 |
| EC3A16H-E | 9~18V | ±15V | ±0.1A | 15mA | 85 | 3000VDC | DIP24 |
| EC3A17H-E | 9~18V | 3.3V | 0.6A | 7.5mA | 78 | 3000VDC | DIP24 |
| EC3A11HM-E | 9~18V | 5V | 0.6A | 7.5mA | 81 | 1500VDC | DIP24 |
| EC3A12HM-E | 9~18V | 12V | 0.25A | 10mA | 84 | 1500VDC | DIP24 |
| EC3A13HM-E | 9~18V | 15V | 0.2A | 10mA | 85 | 1500VDC | DIP24 |
| EC3A14HM-E | 9~18V | ±5V | ±0.3A | 15mA | 82 | 1500VDC | DIP24 |
| EC3A15HM-E | 9~18V | ±12V | ±0.125A | 12mA | 84 | 1500VDC | DIP24 |
| EC3A16HM-E | 9~18V | ±15V | ±0.1A | 15mA | 85 | 1500VDC | DIP24 |
| EC3A17HM-E | 9~18V | 3.3V | 0.6A | 7.5mA | 78 | 1500VDC | DIP24 |
| EC3A11MS-E | 9~18V | 5V | 0.6A | 7.5mA | 81 | 500VDC | SMD24 |
| EC3A12MS-E | 9~18V | 12V | 0.25A | 10mA | 84 | 500VDC | SMD24 |
| EC3A13MS-E | 9~18V | 15V | 0.2A | 10mA | 85 | 500VDC | SMD24 |
| EC3A14MS-E | 9~18V | ±5V | ±0.3A | 15mA | 82 | 500VDC | SMD24 |
| EC3A15MS-E | 9~18V | ±12V | ±0.125A | 12mA | 84 | 500VDC | SMD24 |
| EC3A16MS-E | 9~18V | ±15V | ±0.1A | 15mA | 85 | 500VDC | SMD24 |
| EC3A17MS-E | 9~18V | 3.3V | 0.6A | 7.5mA | 78 | 500VDC | SMD24 |
| EC3A11HS-E | 9~18V | 5V | 0.6A | 7.5mA | 81 | 3000VDC | SMD24 |
| EC3A12HS-E | 9~18V | 12V | 0.25A | 10mA | 84 | 3000VDC | SMD24 |
| EC3A13HS-E | 9~18V | 15V | 0.2A | 10mA | 85 | 3000VDC | SMD24 |
| EC3A14HS-E | 9~18V | ±5V | ±0.3A | 15mA | 82 | 3000VDC | SMD24 |
| EC3A15HS-E | 9~18V | ±12V | ±0.125A | 12mA | 84 | 3000VDC | SMD24 |
| EC3A16HS-E | 9~18V | ±15V | ±0.1A | 15mA | 85 | 3000VDC | SMD24 |
| EC3A17HS-E | 9~18V | 3.3V | 0.6A | 7.5mA | 78 | 3000VDC | SMD24 |
| EC3A14S-E | 9~18V | ±5V | ±0.3A | 15mA | 82 | 500VDC | SMD24 |
| EC3A17S-E | 9~18V | 3.3V | 0.6A | 7.5mA | 78 | 500VDC | SMD24 |
| EC3A16S-E | 9~18V | ±15V | ±0.1A | 15mA | 85 | 500VDC | SMD24 |
| EC3A15S-E | 9~18V | ±12V | ±0.125A | 12mA | 84 | 500VDC | SMD24 |
| EC3A17HMS-E | 9~18V | 3.3V | 0.6A | 7.5mA | 78 | 1500VDC | SMD24 |
| EC3A13S-E | 9~18V | 15V | 0.2A | 10mA | 85 | 500VDC | SMD24 |
| EC3A12S-E | 9~18V | 12V | 0.25A | 10mA | 84 | 500VDC | SMD24 |
| EC3A11S-E | 9~18V | 5V | 0.6A | 7.5mA | 81 | 500VDC | SMD24 |
| EC3A11HMS-E | 9~18V | 5V | 0.6A | 7.5mA | 81 | 1500VDC | SMD24 |
| EC3A12HMS-E | 9~18V | 12V | 0.25A | 10mA | 84 | 1500VDC | SMD24 |
| EC3A13HMS-E | 9~18V | 15V | 0.2A | 10mA | 85 | 1500VDC | SMD24 |
| EC3A14HMS-E | 9~18V | ±5V | ±0.3A | 15mA | 82 | 1500VDC | SMD24 |
| EC3A15HMS-E | 9~18V | ±12V | ±0.125A | 12mA | 84 | 1500VDC | SMD24 |
| EC3A16HMS-E | 9~18V | ±15V | ±0.1A | 15mA | 85 | 1500VDC | SMD24 |
