產品詳情介紹
Features
2700 – 3200 MHz
Low Loss
High Isolation
Tight Amplitude Balance
90 deg Quadrature
Surface Mountable
CTE Matched
WiMax Band
Tape and Reel Option
Specifications

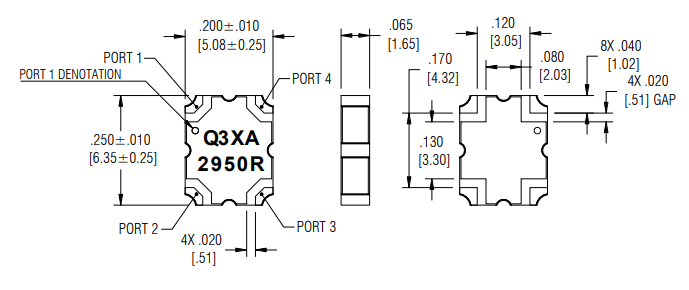

Size: .250 x .200 inches
Frequency: 2700-3200 MHz
Power: 20 W
Insertion Loss: .14 dB
Amplitude Balance: ± .3
Isolation: 21 dB
VSWR: 1.20
Phase Balance: ± 3
